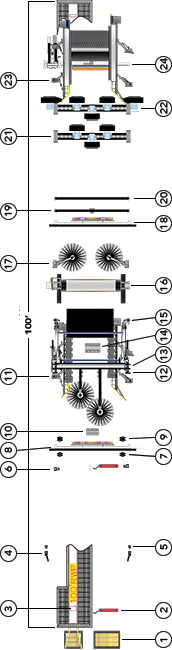

|1||Super Duty Roller Correlator & Plastic Roller Y-Section|
Used to align the vehicle at the entrance of the conveyor.
|2||105-Foot Super Duty™ Conveyor – Rear Wheel Push|
4 ft. roller spacing, X458 chain, double air take-up, pulse switch, fiberglass trench grating.
|3||Entrance Photo Eye System|
Communicates vehicle position with controller.
|4||Sudz A Lot Foaming Arch System|
Sudz A Lot Foaming Arch with a Dosatron dilution station.
|5||Foaming Alpha WTA System|
“Alpha” wheel & tire applicators, timer and 2 foam G-57 dilution stations.
|6||Foaming Pre-soak Arch System|
Color Skinz K-nozzle Pre-soak Arch with a foam G-57 dilution station.
|7||Low Rider Side Wheels – Hydraulic|
Low side wheels, bottom drive, mounted on cross-over legs.
|8||Cross-Over™ Wrap Arounds|
Includes auto retract, foam streamers and Color Skins™.
|9||Triple Foam Streamer™ System|
Foam G-57 triple dilution station, stands and triple foam streamers.
|10||Accelerator™ Top Wheel – Electric|
Horizontal Top Cleaning Wheel with Star Foam, Foam Streamers™ and a foam G-57 dilution station, open pickup bed detection system.
|11||High Pressure Axis Arch™ Top|
Horizontal tracing high pressure rotary turbo nozzle cleaning technology with (1) 18GPM- 15HP pumping station.
|12||Under Carriage Flush|
Stainless steel cover, 18gpm Manifold.
|13|| Bulldog Wheel Brush – Hydraulic|
Alternating diameter feather-tipped wheel brush with auto retract kit.
|14||High Pressure Wheel Blasters|
High pressure rotary turbo nozzle (6) wheel cleaner, mounted on Bulldog, 18gpm @ 1,000PSI with (1) 18GPM-15HP pumping station.
|15||Sudz A Lot Hot Wax Foaming Arch System|
Sudz A Lot foaming arch with a Dosatron dilution station.
|16||F2B – Front to Back Mitter|
Front to back overlapping basket cloth mitter curtain with Color Skins™.
|17||High Boy Side Wheels™ – Hydraulic|
72” High side wheels, bottom drive.
|18||Triple Manifold Color Skinz Arch|
Extra revenue protectant arch, drying agent arch & sealer wax – Color Skinz K-nozzle Arch, V-nozzle Arch (2).
|19||Spot-Free Rain Arch|
Color Skinz Rain Arch.
|20, 21||100 H.P. Touch-Free Dryer|
1) 70hp Air One Dryer with Color Skins™ Arch & (1) 30hp Profiler Dryer with Color Skins™Arch.
|22, 23, 24||Dry N’ Shine Top Wheel & Motor City SS Tire Gloss System|
3 Wheel Dry N’ Shine system with ultra-thin drying cloth, with Dry N’ Shine programmable logic control center with touchscreen, easy to read and program software, which includes nighttime wash cycle, rinse cycle and spin dry cycle and customer service confirmation LED sign package. Super shiner tire gloss applicator machine and complete back room station.
|LED Signs||LED Lights and Backlit Signs|
LED rope lights, backlit round signs, backlit arch corner signs, custom decals.
|BR||Chemical Dilution Stations|
– All required to properly operate the system.
|BR||Motor Control Center (MCC)|
Integrated panel(s) with VFD’s, motor starters, soft starts & disconnects for Wash Street – 120VAC – 208v/230v/460v.
|BR||Hydraulic Power Pack System|
– All required.
|BR||Motor City Wash Works Tunnel Controller|
32 inputs/48 outputs Schneider M340 PLC, disconnect/master on, emergency stop circuits, panel-mounted HMI touchscreen for output on/off/auto control. Windows-based tunnel controller set up software included. POS software with Dell PC and 17” touchscreen, laser receipt printer, cash drawer.
|STARTING AT $380,077.00|
