Mini™ Wraps

  • Crossover™ Wrap Arounds
  • Mini™ Wraps
  • Wheel Brushes
  • Front To Back Mitter
  • Side To Side Mitter
  • Rockerz™ Side Wheels
  • Low Riderz™ Side Wheels
  • High Boyz™ Side Wheels
  • Tire Dressing Machines
  • Under Carriage
  • Accelerator™ Top Wheel
  • Dually™ Top Wheel
  • 300GTe™ Wrap Arounds
  • 300GTx™ Wrap Arounds
  • 300GTex™ Wrap Arounds
Home Company Patents Wash Equipment Mini™ Wraps
ABOUT:

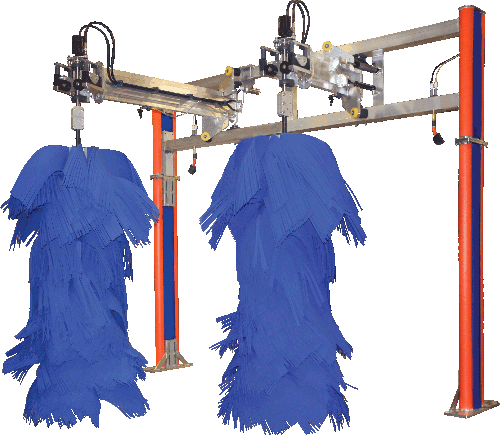

This compact yet powerful car wash system is engineered for maximum efficiency and performance in minimal space. Measuring just 12 feet in tunnel length and 10 feet in overall height, it delivers thorough cleaning at rates up to 100 cars per hour. Front license plate bump control cylinders virtually eliminate bent plates, while offset arms with pivoting heads ensure superior cleaning of the front, sides, and rear. Foam Streamers™ come standard for optimal lubrication and cleaning, and the system supports a choice of C-Channel Foam or Star Foam™ wash materials. The Mini™ Wraps can be staggered with Low Riderz™ side wheels to pack even more wash power into tight spaces. Featuring an aluminum structure with stylish Color Skinz™ snap-on covers and an “Arch Style” design for easy installation and hidden utilities, the system also includes license plate and mirror sensing for added precision and protection.

FEATURES:
  • Front plate bump control prevents bending.

  • Mini™ Wraps and Low Riders™ can be staggered for more wash power in 12ft.

  • Foam Streamers™ standard for lubrication and cleaning.

  • Offset pivoting arms clean front, sides, and rear.

  • Wash material options: C-Channel Foam or Star Foam™.

  • Includes license plate and mirror sensing.

Get A Quote
TECHNICAL DATA

Tunnel Length
168.00in. (14.00ft.)

Tunnel Width
145.00in. (12.08ft.)

Unit Height
120.00 in. (10.00ft.)

Vehicle Clearance
90.00in. (7.50ft.)

Water
18GPM @ 40PSI

Electric
1.5HP – 208/230/460

Hydraulic
6GPM

Pneumatic
2 SCFM
