Home Company Patents Wash Equipment High Boyz™ Side Wheels
ABOUT:

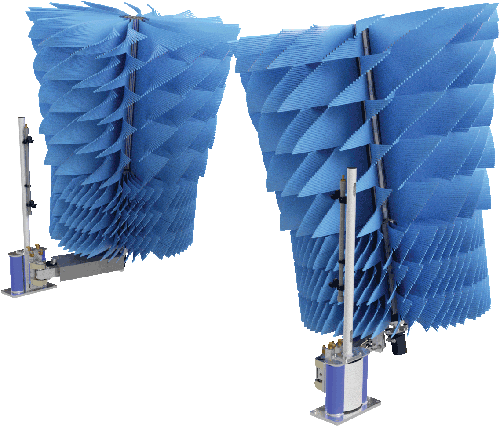

The bottom drive design saves precious space. High Boyz™ Side Wheels only take up 6 feet of tunnel length, while using a 72-inch tall brush. Hydraulic drive is standard, or you can upgrade to electric drive with a 1hp wash down rated stainless steel electric drive motor and a rigidly mounted aluminum gearbox. A shock and spring are used to hold tension on the side of vehicles, or air-operated controls and retracts can be chosen as an upgrade option. Its simple design delivers excellent wash coverage on the sides of vehicles from the wheels all the way up to the top of side windows of trucks and SUV’s at line speeds of 180 cars per hour or more.

Durable Aluminum Frame with Color Skinz™ and snap-on UHMW covers.

OPTIONS AVAILABLE:
  •  Slide-In C-Channel Foam Wash Material, or Star Foam™ on Top With Cotton Cloth™ Wash Material on the Bottom.
  • Wash Works Exclusive Cotton Cloth™ Wash Material.
  • Your Choice of Shock and Spring Tension or Adjustable Air Cylinder Retract and Pressure Controls.
  • Hydraulic or Electric Drive
FEATURES:
  • 6ft. of Tunnel Space Required
  • Superior Cleaning at Line Speeds of 180 CPH or More
  • 72in of Brush Height That Reaches 82in High on Sides of Vehicles
  • Bottom Drive Support Structure & Controls Save Space and Prevents Tangling with Mitter Curtains.
  • Adjustable Air Cylinder Retract and Pressure Controls.
  • High Boyz™ with C-Channel Wash Material, Free Standing Mount.
Get A Quote
TECHNICAL DATA

Tunnel Length
72.00in. (6.00ft.)

Tunnel Width
144.00in. (12.00ft.)

Unit Height
84.00 in. (7.00ft.)

Vehicle Clearance
N/A

Water
2GPM @ 40PSI

Electric
1HP – 208/230/460

Hydraulic
3GPM

Pneumatic
2SCFM
