ABOUT:

The Dry N’ Shine™ solves two major drying issues. First, it features an automatic wash and rinse cycle that self-cleans the drying material overnight, ensuring it’s ready for the next day. No more labor or constant attention required. Second, it addresses the problem of over-saturation by using a programmable spin-dry cycle that accelerates evaporation and prevents the material from becoming ineffective after a few cars. With increased RPM during the spin cycle, water is flung off, keeping the drying material dry and efficient all day. The Dry N’ Shine™ consistently dries cars at over 140 cars per hour, after a 50 HP forced air dryer, without ever reaching saturation, all while using less horsepower and offering high customer appeal and revenue potential.

Features an aluminum frame with Color Skinz™ snap-on covers!

FEATURES:
  • Get Drier Cars Using Less Horsepower
  • Eliminates Manual Towel Dryers
  • Boosts Revenue with New Service/Package
  • Consistency
  • Enhanced Customer Experience – Extremely Quiet!
  • Self-Cleaning Wash and Rinse Cycle During off Hours
  • Sense What Part of Vehicle it’s Drying, Adapts Speed Automatically
Get A Quote
TECHNICAL DATA

Tunnel Length
Top Wheel Only – 108in (9ft 3in)
Top and Side Wheels – 228in (19ft)

Tunnel Width
168in (14ft 3in)

Unit Height

Vehicle Clearance

Water
Top Wheel Only – 10 GPM @ 40PSI
Top Wheel and Side Wheels – 10 GPM @ 40PSI

Electric
 208V SYSTEM: ONE 40 AMPS 3PH CIRCUIT
480V SYSTEM: ONE 20 AMPS 3PH CIRCUIT

Hydraulic
N/A

Pneumatic
Top Wheel Only – 3 SCFM
Top and Side Wheels – 3 SCFM

Express Tunnels
  • Reduce utility consumption/expenses.
  • Produce drier vehicles… Consistently!
  • Increase ticket average $1 to $3.
  • Attract, retain, and grow customer base with increased customer satisfaction.
  • Eliminate labor from towel dryers if offered.
Flex-Serve Tunnels
  • Reduce utility consumption/expenses.
  • Produce drier vehicles… Consistently!
  • Increase ticket average $1 to $3.
  • Attract, retain, and grow customer base with increased customer satisfaction.
  • Reduce labor from towel dryers.
  • Increase production/throughput.
Full-Service Tunnels
  • Reduce utility consumption/expenses.
  • Produce drier vehicles… Consistently! Specifically on the top surfaces of larger vehicles that not even Wilt Chamberlain could reach.
  • Attract, retain, and grow customer base.
  • Reduce labor from towel dryers.
  • Increase production/throughput.
GET YOUR R.O.I. IN LESS THAN ONE YEAR!!!
Annual VolumeRevenue Per Car IncreaseAnnual Revenue IncreaseInvestmentROI/Months
75,000$1.00/Car$75,000$49,0007.8 Months
75,000$2.00/Car$150,000$49,0003.9 Months
75,000$3.00/Car$225,000$49,0002.6 Months

Drier Cars

get drier cars using less horsepower

Reduce Labor

no need for manual towel dryers

Increase Revenue

by adding a new service/package to boost revenue

Higher Customer Satisfaction

by consistently producing dry and shiny vehicles

Enhanced Customer Experience

a car wash experience that’s quiet as a whisper

Self Cleaning

wash equipment that cleans itself, wash and rinse cycle operates in off hours

Intelligent

senses what part of the vehicle is drying and changes rotation speed of drying wheels

Single Top Wheel
Top Wheel Space
DRY N’ SHINE™ > Single Top Wheel.

The Dry N’ Shine™ Top Wheel can keep up with a steady paced throughput of 100 cars per hour, even if the Dry N’ Shine™ extra service capture rate is as high as 50% of the total cars washed in the same period. At this throughput, the Dry N’ Shine™ will stay effective at drying vehicles’ horizontal surfaces all day long. It can also be programmed to spin dry in between cars.

Car wash wheel brush
Car wash wheel brush
DRY N’ SHINE™ > Single Top Wheel, High Side Wheels and Sign Package.

The Dry N’ Shine™ 3-wheel system can keep up with a steady paced throughput of 100 cars per hour, even if the Dry N’ Shine™
extra service capture rate is as high as 50% of the total cars washed in the same period. At this throughput, the Dry N’ Shine™ will
stay effective at drying vehicles’ horizontal and vertical surfaces all day long. It can also be programmed to spin dry in between cars.

Car wash wheel brush

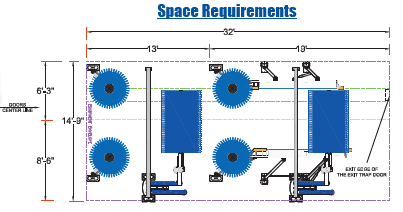

Sign Package Space

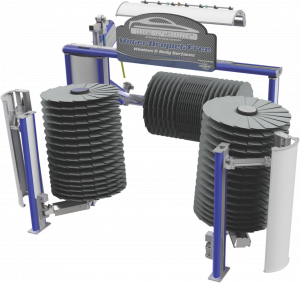

DRY N’ SHINE™ > Dual Top Wheels, Dual High Side Wheels and Sign Package.

The Dry N’ Shine™ 6-wheel system can keep up with a steady paced throughput of 200 cars per hour, even if the Dry N’ Shine™
extra service capture rate is as high as 50% of the total cars washed in the same period. At this throughput, the Dry N’ Shine™ will
stay effective at drying vehicles’ horizontal and vertical surfaces all day long. It can be programmed to alternate top wheels and
side wheels as it dries car after car. Also, it can also be programmed to spin dry in between cars in order to prevent drying material
from becoming saturated.
