ABOUT:

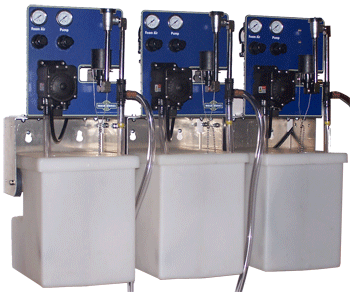

The Triple Foam Dilution Station from Motor City Wash Works combines three Hydrominder dilution stations with Flojet air-operated solution pumps, powered by a 110VAC 3-way high-flow MAC air valve. With a simple water distribution manifold, it requires just one water supply connection. Each pump and foam applicator set has individual air controls for precise operation. The system features three digital chemical metering pumps with flow rates from 0-100ml/min, displaying real-time stats on an LCD screen. The station includes an aluminum bracket, 3/4” ASCO water solenoid valve, panel-mounted gauges, air regulators, and PVC plumbing, all mounted easily with keyhole slots.
OPTIONS AVAILABLE:
- Triple Foaming MCWW Digital Direct Feed Dilution Station
- Triple Foaming Blue-White Direct Feed Dilution Station
FEATURES:
- Hydrominder Float Valves – Used for foam dilution.
- Flojet Air-Operated Solution Pumps
- 110VAC 3-Way High Flow MAC Air-Valve
- Water Distribution Manifold
- Individual Air Controls
- Viton G-57 Flojet Pumps Available
- Digital Chemical Metering Pumps
- Aluminum Mounting Bracket
- ASCO Water Solenoid Valve with DIN Connector
- Panel-Mounted Gauges
- Panel-Mounted Air Regulators
- Chemical Injectors
- 3/4” PVC Plumbing
- 3/8” Clear Vinyl Chemical Suction Tube
- Foot Valves with Weights
- In-Line 40-Mesh Low Profile Strainers
- Wall-Mountable
